Equipment for Recycled Rubber Products
The following plants create valuable end-products from recycled rubber tyres:

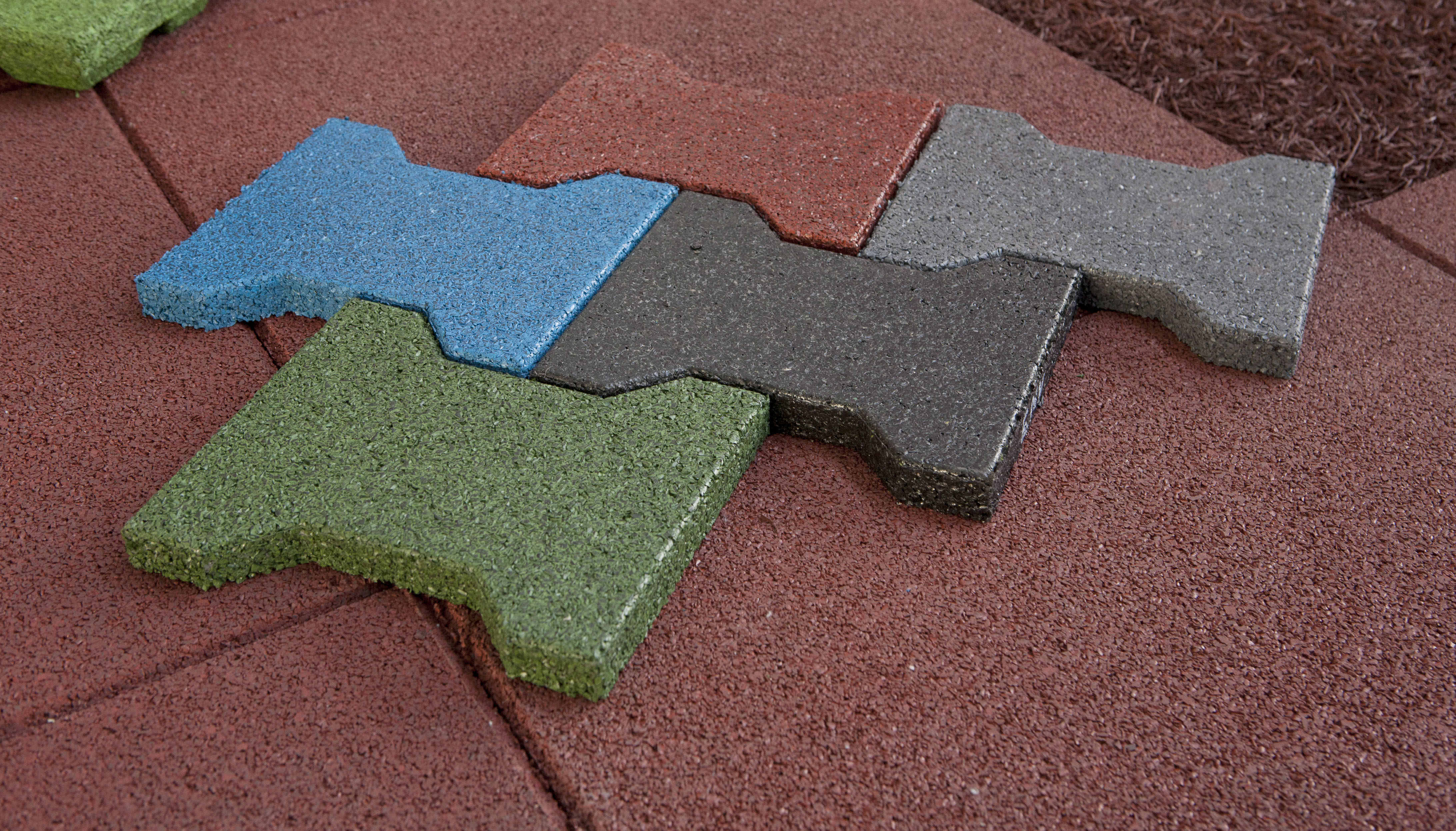

ANTI-SHOCK FLOORING PRODUCTION
![Anti-Shock Flooring Production](/getmedia/6da32a20-1d8f-44a8-b4e7-54f74ffe4f71/PRESSAMetamorphosis-II-960X650;.aspx?width=600&height=406)
![](/getmedia/b2e87d5b-0dba-46ad-b481-ae089107cd44/IMG_9301;.aspx?width=195&height=130)

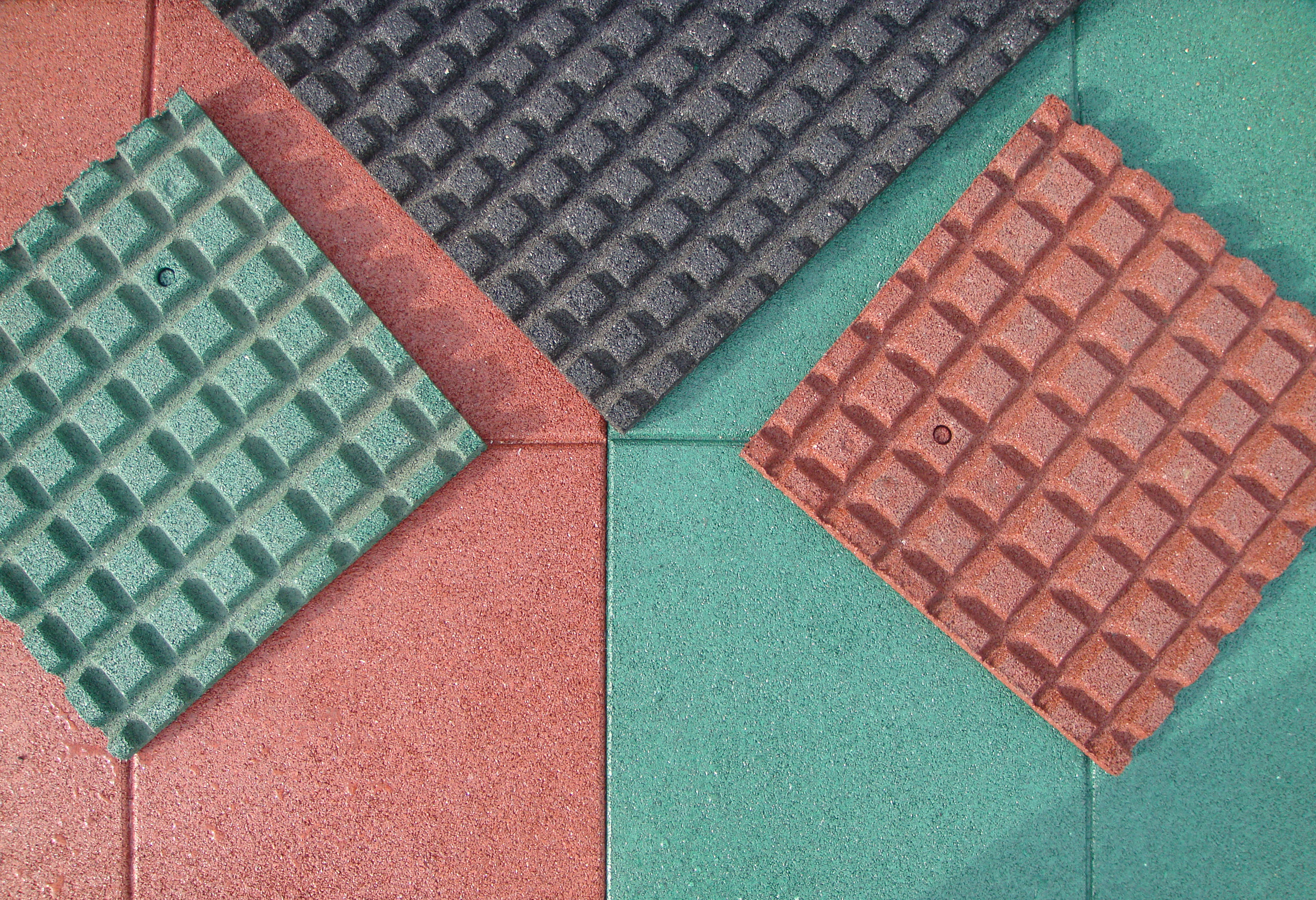

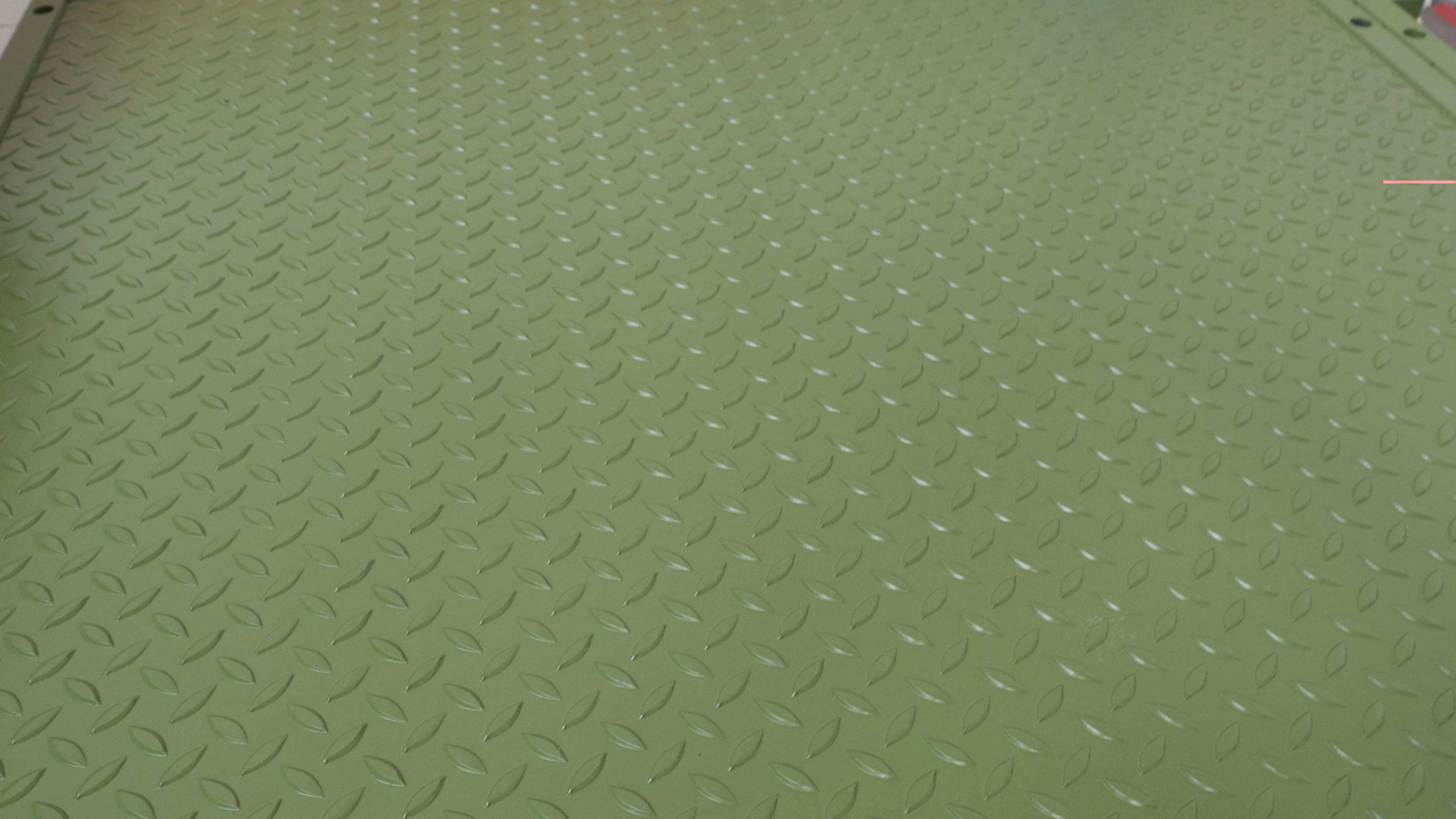

Salvadori's Anti-Shock Flooring Production Plant makes use of recycled rubber granulate to produce anti-shock flooring with a variety of applications:
- Playgrounds
- Gymnasiums
- Animal Shelters
- Outdoor Steps
- Sporting Tracks
The Plant consists of the following pieces of equipment, also supplied as separate machines:

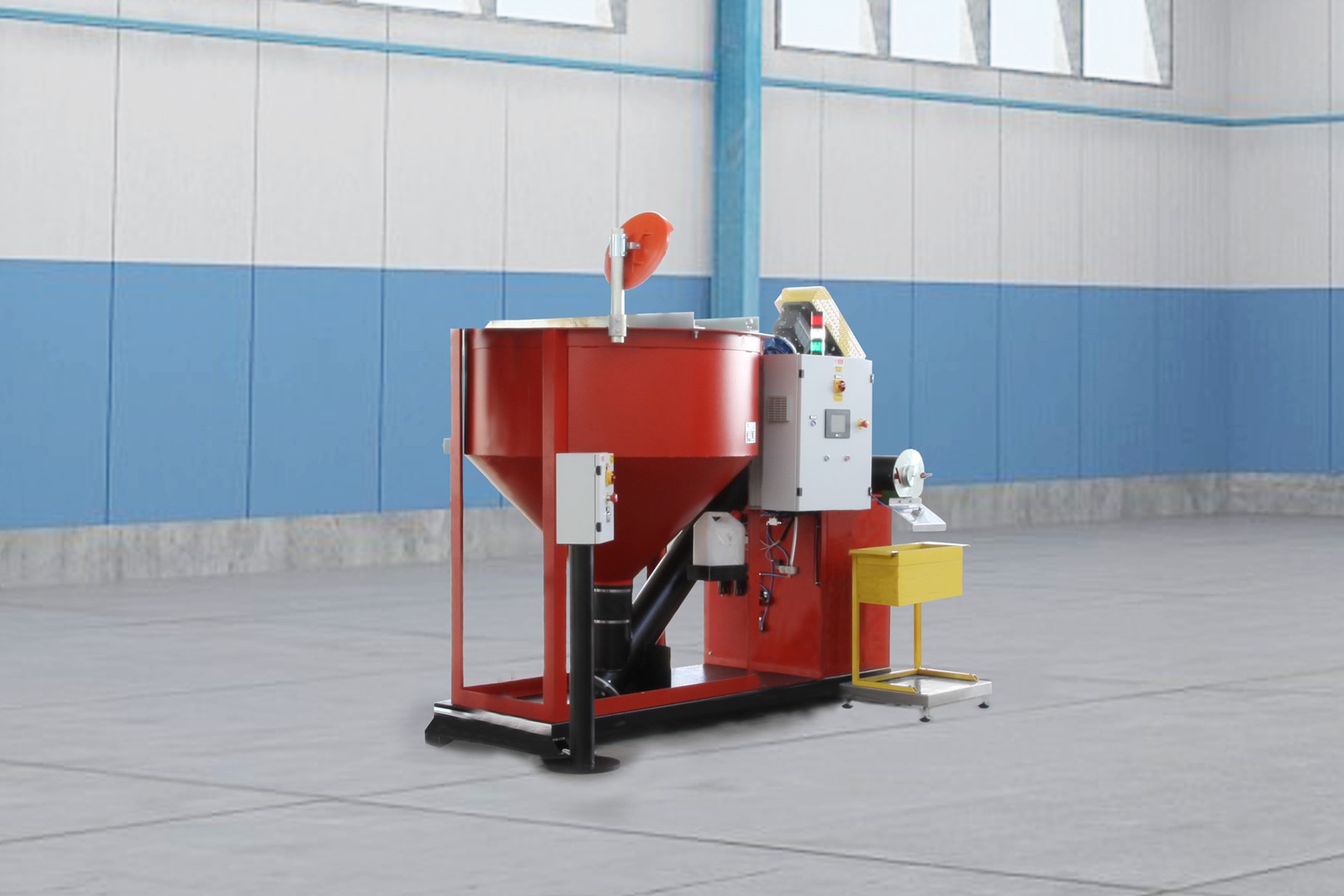

Batch Mixer
![Portable Mixer](/getmedia/90eb7f14-f86c-4847-96b3-37939c363796/MESCOLATORE-GRANDE-2015-crop;.aspx?width=200&height=250)
TECHNICAL SPECIFICATIONS
|
Power |
9.0 kW |
Capacity |
120 L |
Weight |
15 Kgs |

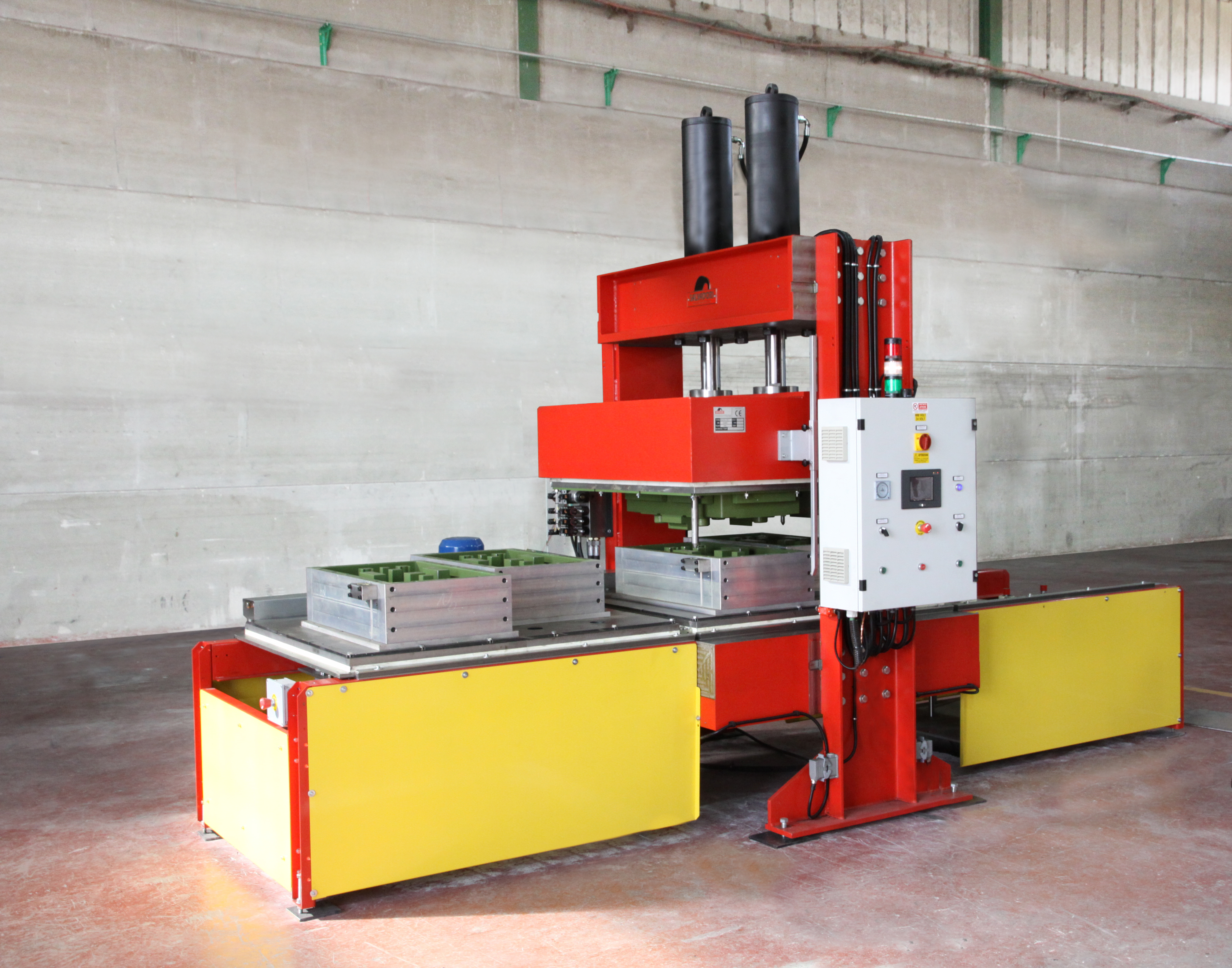

Production Press
![Production Press](/getmedia/67baaa0a-c626-4dc3-9ef1-dcc987586156/PRESSA-2-960X650;.aspx?width=300&height=203)
TECHNICAL SPECIFICATIONS
|
Installed Power |
20 kW |
Voltage |
400 V 50 Hz |
Max pressure |
200 bar |

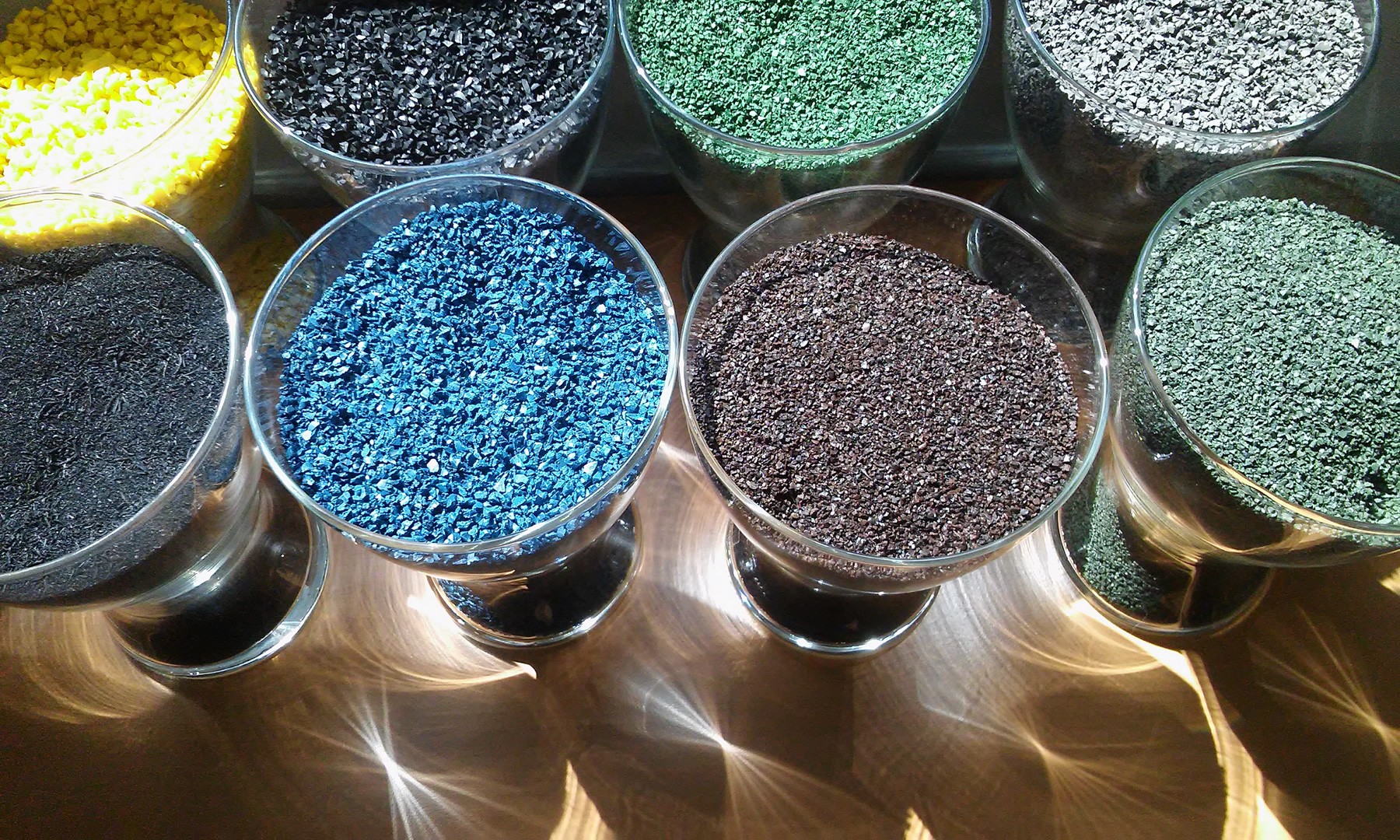

RUBBER GRANULE AND MULCH PAINTING
![Rubber Granule and Mulch Painting](/getmedia/4eadd568-205a-4ac3-8ad9-dc83ae204206/MULCH-PAINTING-PLANT-D_1;.aspx?width=470&height=308)
![](/getmedia/3eaaf530-8b7c-4970-919c-ab36870af97c/mulch;.aspx?width=180&height=108)

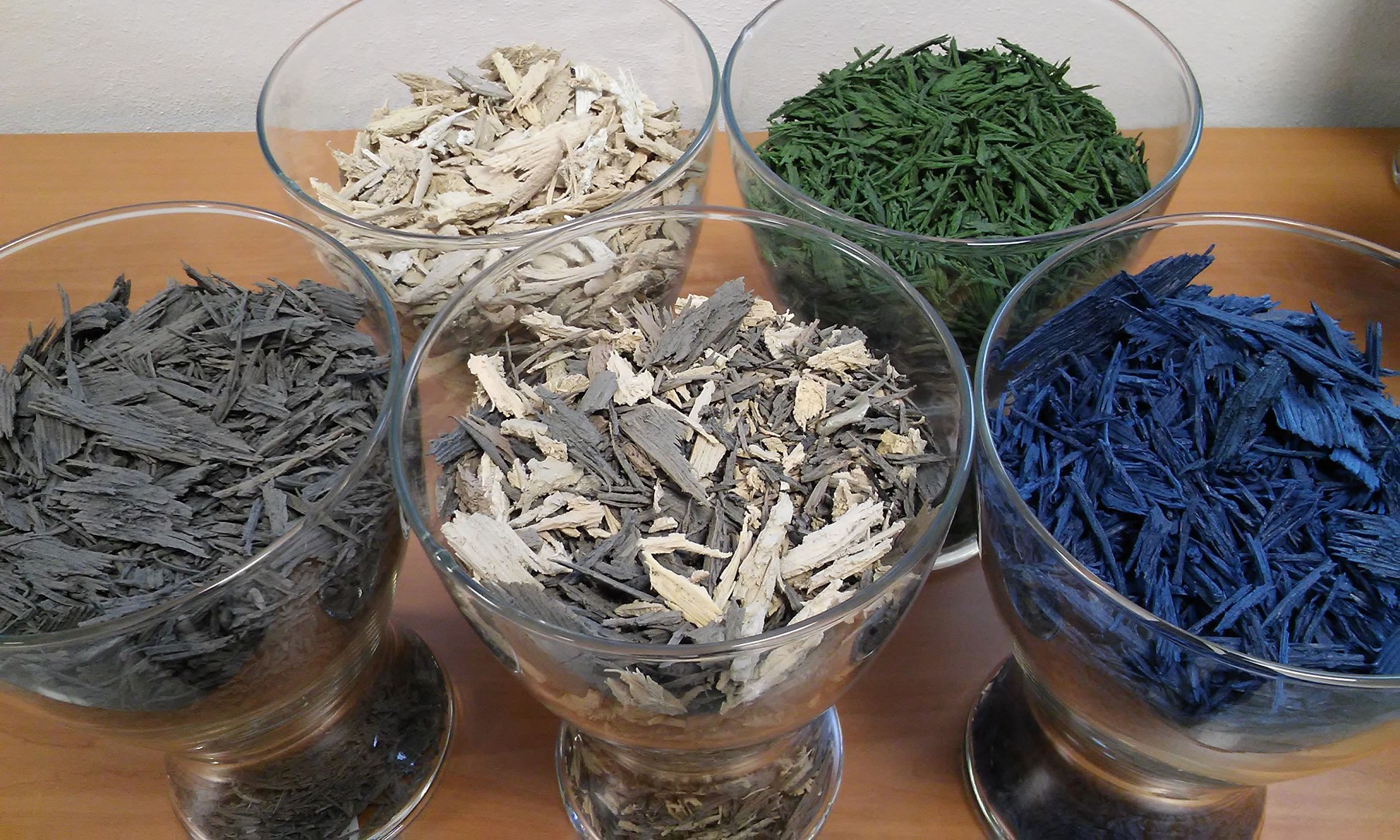

The term Mulch refers to recycled pieces of rubber that are coloured, dried and used in a similar way as bark: ideal for playground surfaces, parks, gardens, flower beds, paths and other green areas. Mulch offers many advantages over bark as it is a porous material that is self-draining, reduces friction and provides insulation.

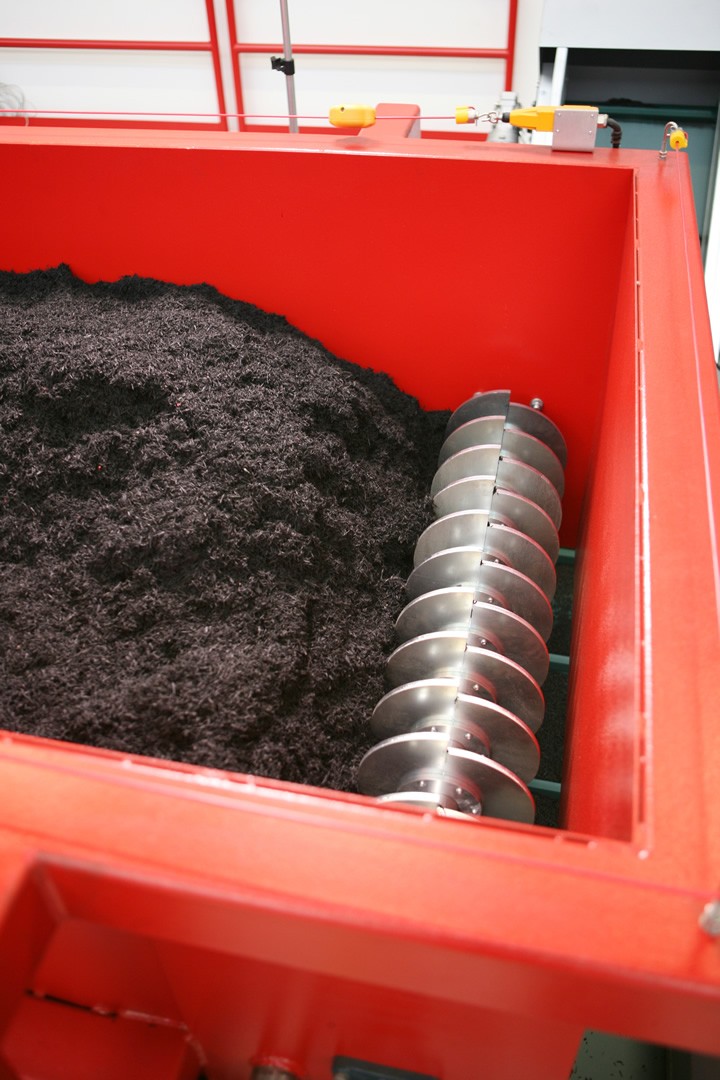

The Rubber Granule and Mulch Painting Plant comprises a big bag discharger, conveyor and weighing unit, mixer, big bag filler and chemical heating unit.
INDUSTRIAL TYRE PRODUCTION
![Industrial Tyre Production](/getmedia/7f4a5419-baf5-4608-887d-be6c6d73919c/tyre-moulding;.aspx?width=300&height=168)
![Tyres on Outdoor Waste Bins](/getmedia/2b50f97d-2079-4c82-8f3d-88d8bb8a2c02/image1051?width=208&height=208)
![](/getmedia/d85f91ce-129e-4e0e-9ad0-3ee274b5a958/WHEELS-2-crop;.aspx?width=195&height=130)
![](/getmedia/88c65341-a56f-42ed-8cc9-c5829fadff18/WHEELS-1;.aspx?width=195&height=138)

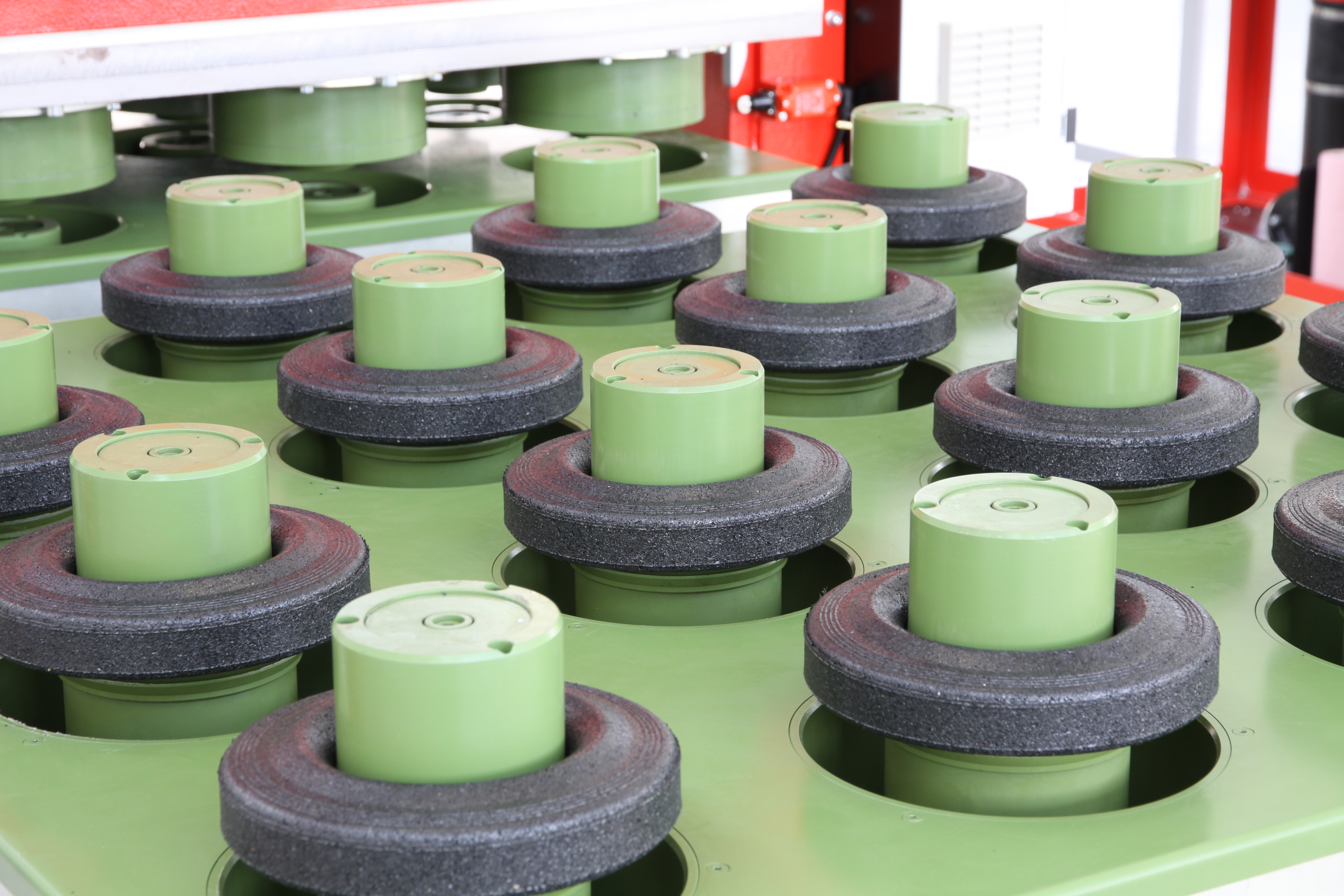

Salvadori provide equipment for the production of solid industrial tyres, such as is used on large waste disposal bins.
The plant consists of a Mixer and hydraulically-operated Production Press:
Mixer Production Press
THERMO-ACOUSTIC SHEET PRODUCTION
![](/getmedia/c5625a11-1f8b-4a82-aff0-40edd07d4db5/THERMO-ACOUSTIC-a;.aspx?width=600&height=415)
![](/getmedia/dee39260-0fa9-4e25-95fc-46a57024340e/THERMO-ACOUSTIC-c;.aspx?width=195&height=150)
In partnership with Salvadori, Arcon supplies equipment for the production of Thermo-Acoustic Sheets made from recycled rubber granulate.

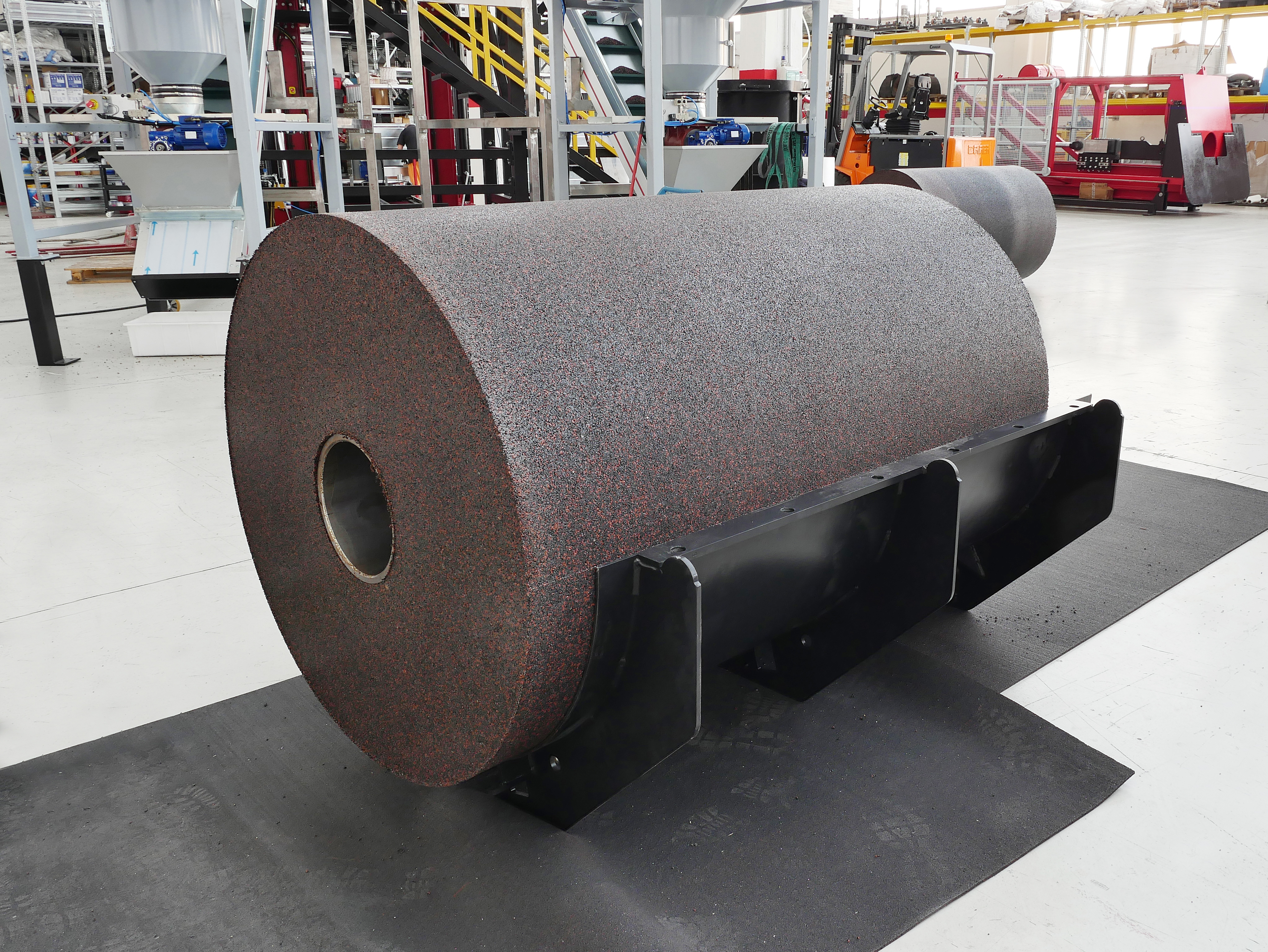

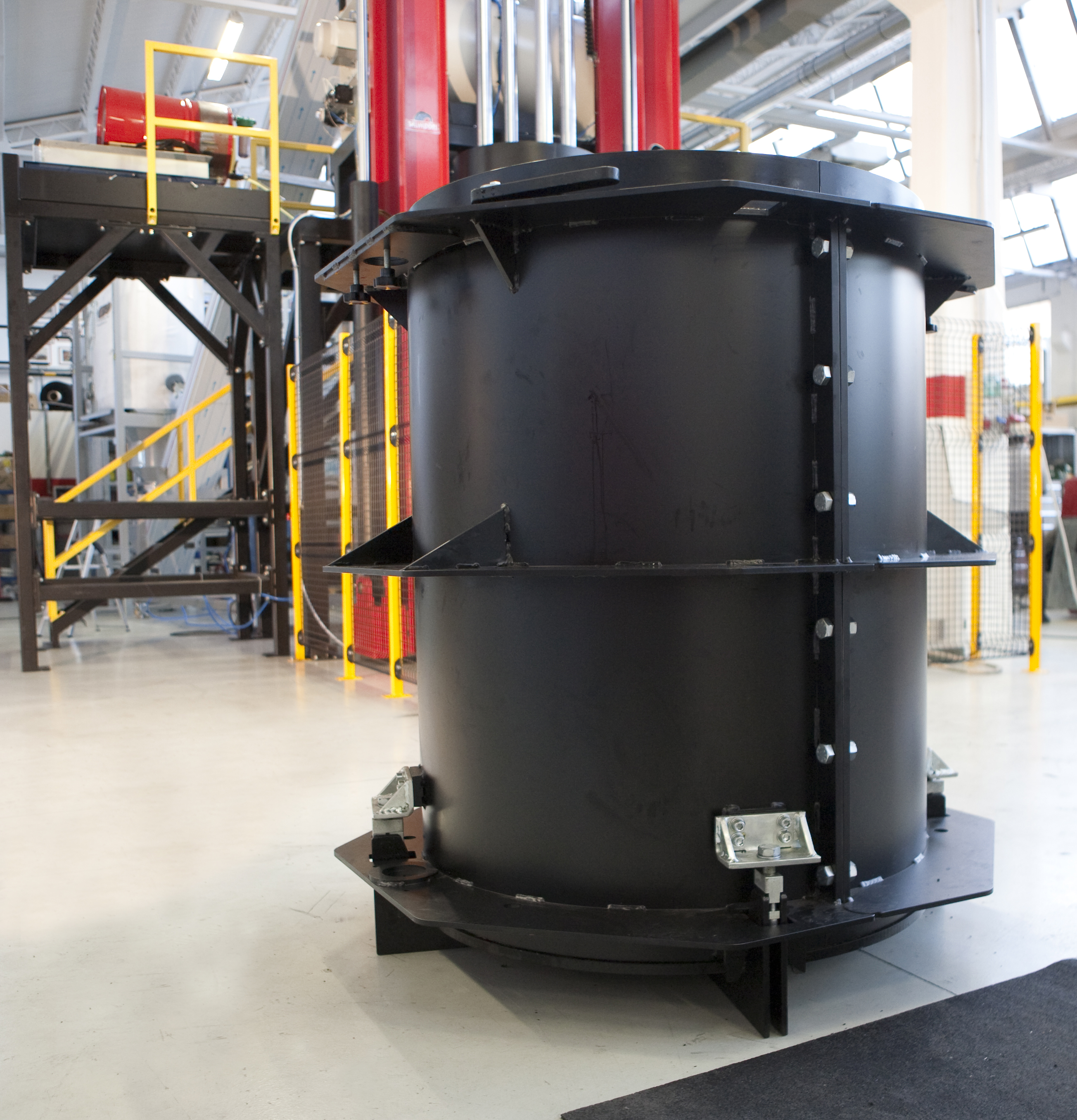

The plant consists of a granulate loader, mixer, mould press and cutter/coiler. The plant produces rubber cylinders with diameters of 1000 m and a maximum height of 1520 mm. Salvadori's Thermo-Acoustic plant is ideal for the production of sheets of 3 - 10 mm thick.
TECHNICAL SPECIFICATIONS
|
Required Space |
20 x 20 x 7 m |
Installed Power |
63.7 kW |
Maximum width |
1520 mm |
Weight |
1063 Kgs |

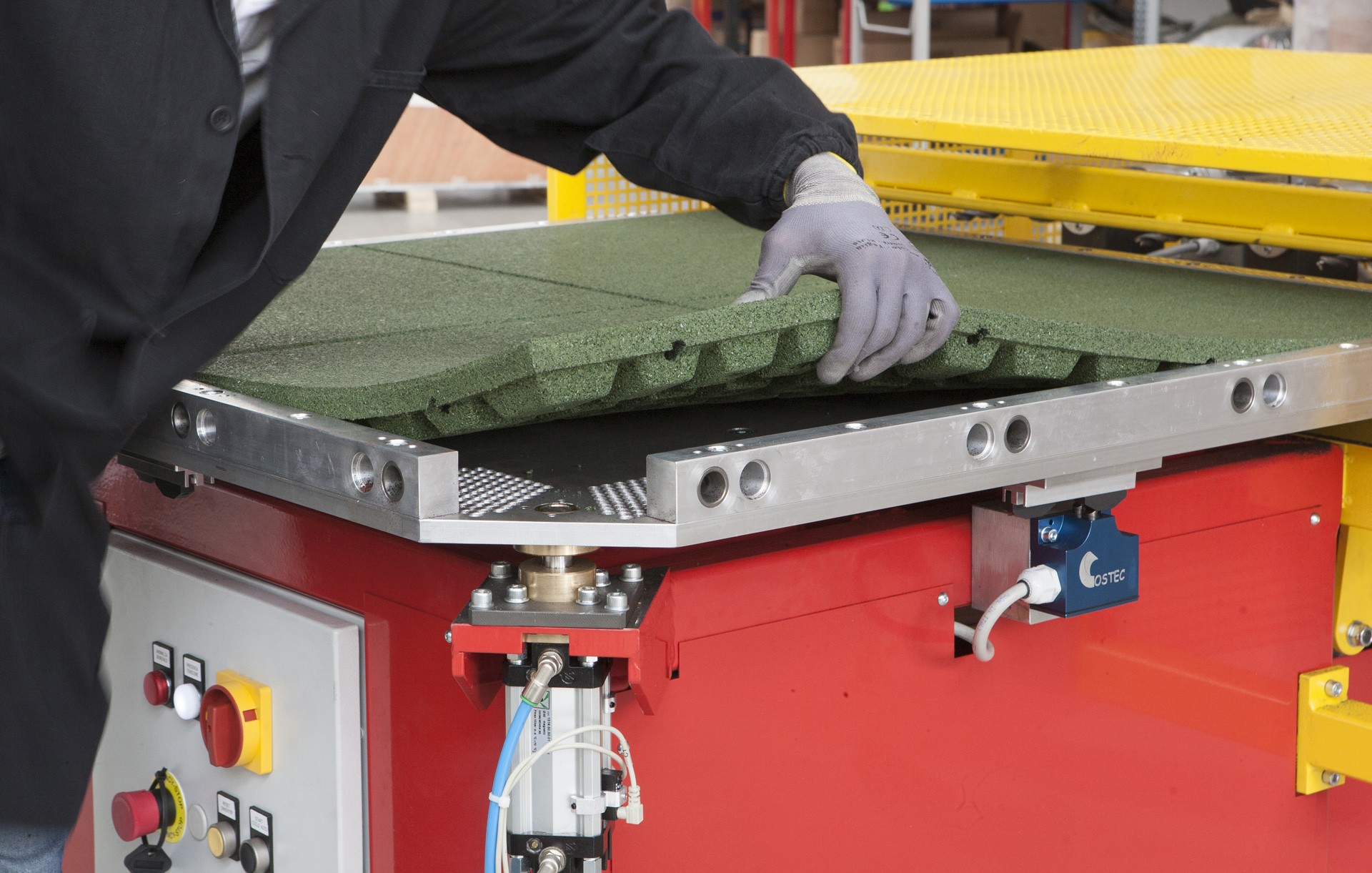

TILES DRILLING
The tiles drilling machine allows you to make holes in the sides of the flooring in which to place junction plugs (ideal for a perfect anchorage between individual tiles).
Equipped with a rotary table, it automatically drills into the four sides of the paving in the following formats: 1000x1000 mm - 1000x500 mm - 500x500 mm.

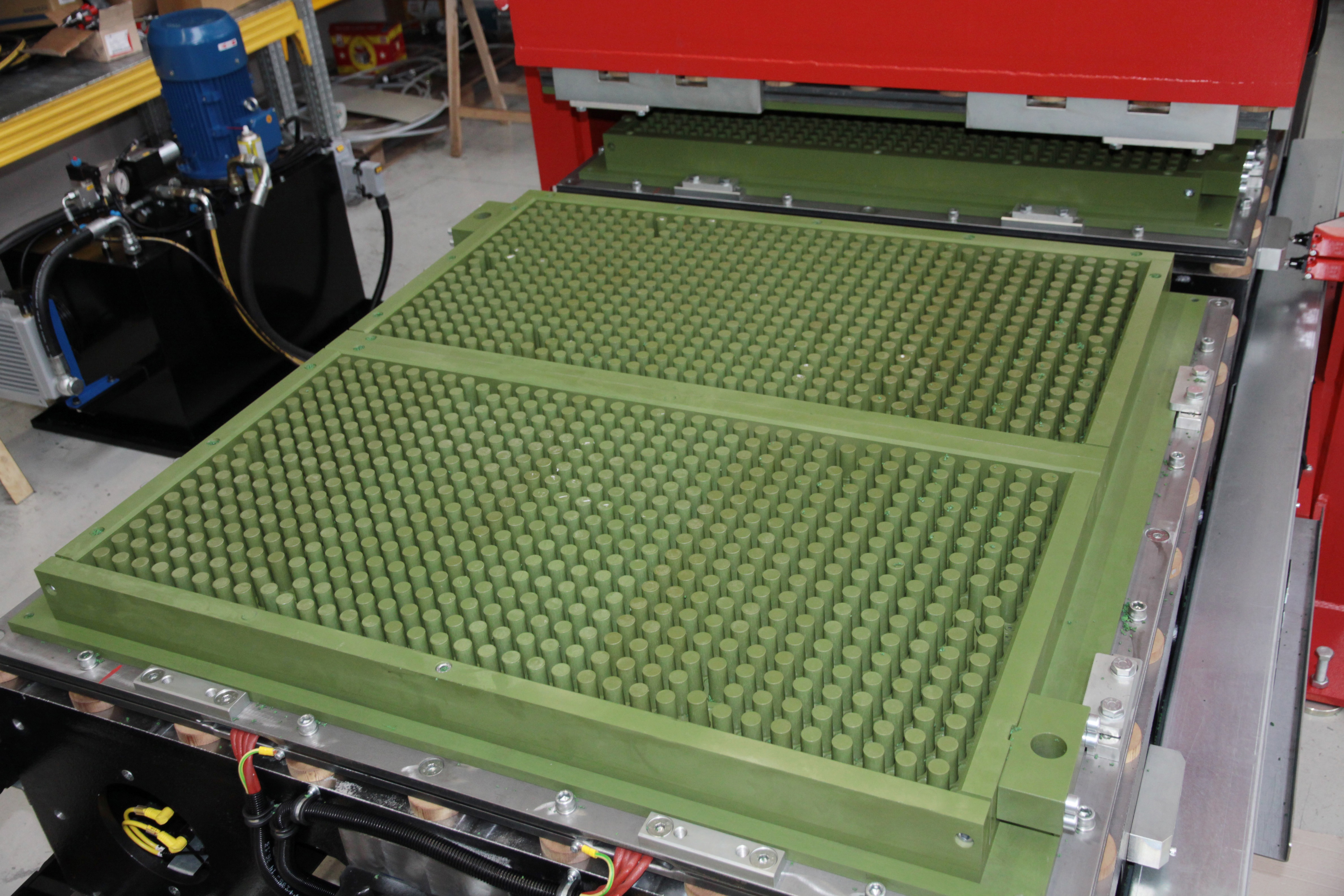

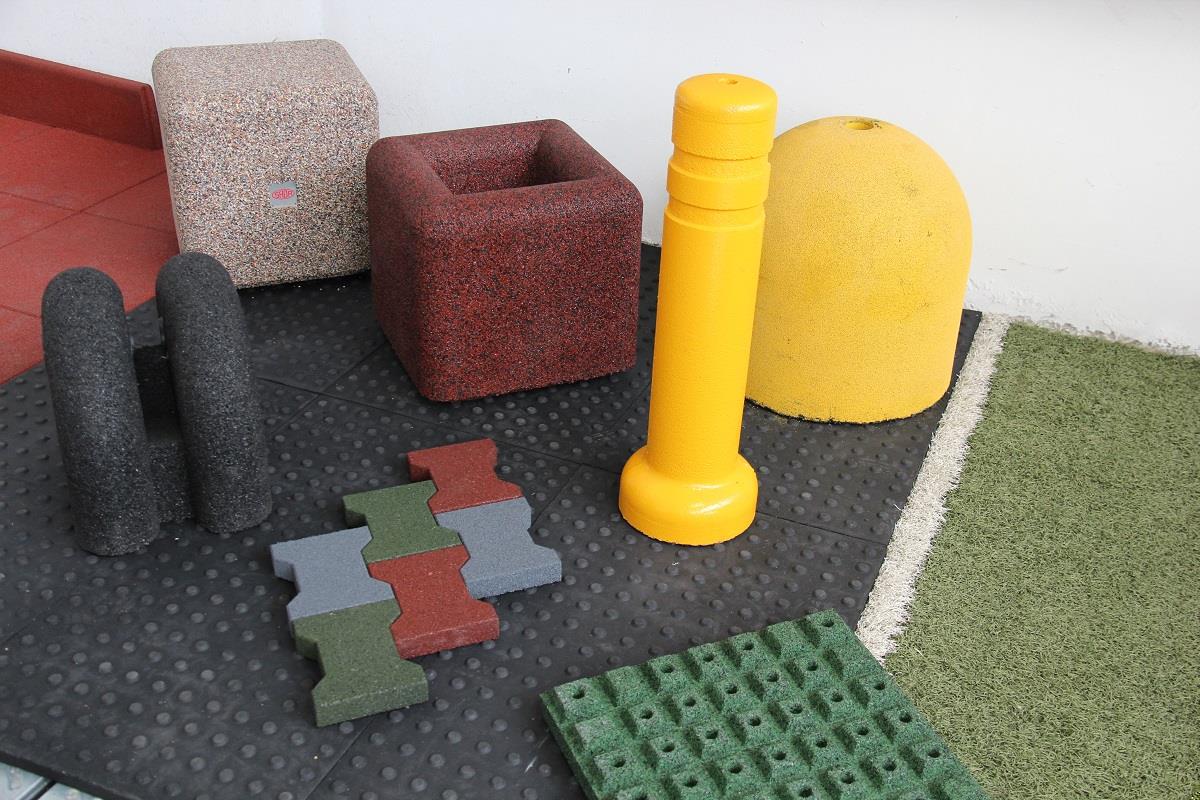

MOULDS AND OTHER ARTICLES
In addition to the traditional range of moulds on the market at present, Salvadori regularly designs and manufactures moulds dedicated to specific customer requirements.
